[Tool] Core Switcher - Force GD to use all cores equally!

thanh1256463 · January 4, 2021, 4:26pm

It always go 80% of cpu 3

Boeng · January 21, 2021, 4:30pm

Thanks for the Tool. Makes it all so much easier.

Although i got the same behavior as thanh1256463, so core 3 gets most of the stuff to do, all in all it runs more smooth, especially when using grimcam and raising the zoom-out level.

Running on a i9 9900k @5Ghz

ncience · January 25, 2021, 10:09pm

What exactly are the 2 brackethotkeys “everyother_0” and “everyother_1” intended for?

powbam · January 25, 2021, 11:20pm

Ah I think that was me “starting” to put in the option to have it toggle cores “every other” - basically, every other 0 would be starting with core 0 and every other 1 would be starting with core 1.

If memory serves I haven’t gotten around to fleshing that out.

SLima · February 12, 2021, 12:03am

I just found out about this and decided to test it. I have a Ryzen 7 2700U and a Radeon 540 on a notebook. The game constantly overloads one CPU. I used the tool and tried manually as well but it’s not working for me. The game overloads core 0. When i switch it off, go back in game, wait a bit and go switch it back on, the game has moved to core 2 and it’s overloading that now. Turning core 0 on again does nothing because the game now is focusing everything in core 2. Switching that off just causes it to jump to core 4. It’s infuriating.

I tried every fix i could find online for the constant severe frame drops during large fights (the game pretty much goes to 10 fps) but nothing worked for me. What i find weird is that the game runs really well in most areas of the game when there aren’t a few dozen enemies fighting but the area that stretches from the Asterkarn Mountains to Fort Ikon has severe frame rate issues as well. Particularly, the fort that connects to the Tomb of Archon Barthollem is terrible in this regard. Has anyone else experienced something like this?

powbam · February 12, 2021, 4:55am

Try manually toggling off every other core and then see how it performs. So toggle off cores 0, 2, 4, and 6 - alternatively you can also try toggling off cores 1, 3, 5, and 7 as well.

iskieria · March 8, 2021, 8:53pm

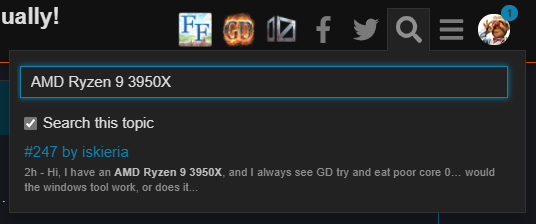

Hi, I have an AMD Ryzen 9 3950X, and I always see GD try and eat poor core 0… would the windows tool work, or does it only handle up to 8 physical cores?

ncience · March 8, 2021, 9:45pm

im not the dev but concludig from the source, it supports up to 32 native 64 logical cores , So the 16 core ryzen is easily covered.

powbam · March 8, 2021, 11:01pm

Correct. The Windows version of the tool can handle pretty much any core configuration mere mortals can afford - and some you can’t.

I should probably update the OP about that eventually - thought I did but looks like I didn’t.

Now as for if it would work (meaning the actual “fix”) with their particular CPU, well…

…that remains to be seen.

iskieria · March 9, 2021, 8:52am

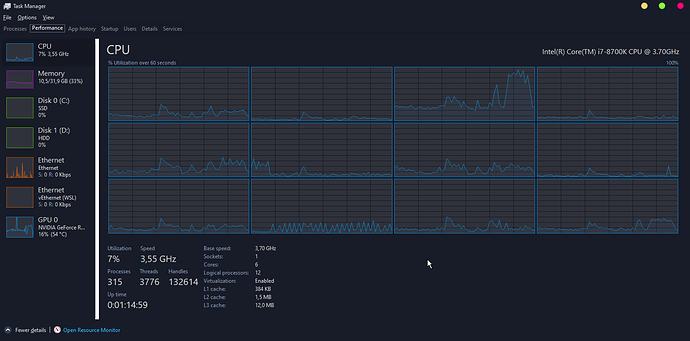

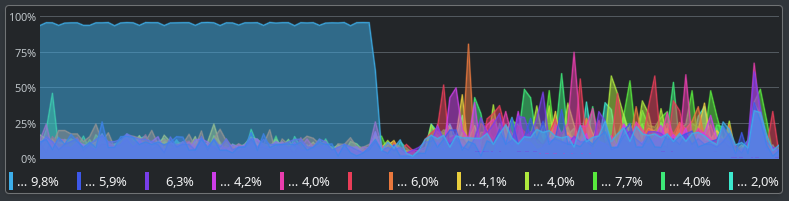

Before: (Minor spikes in other cores because I kept tabbing into other things!

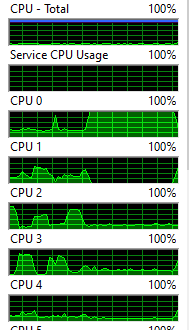

After:

Any core after 5 is just sitting looking pretty. It’s certainly utilising those cores but its interesting how spiky the usage is, when I tested by running around in Homestead

powbam · March 9, 2021, 9:05am

Very nice. It certainly looks better and at least it isn’t stuck on Core 0 smashing its head into the ceiling repeatedly. The constant dips I don’t know… on my CPU it levels out nice and smooth in most scenarios in-game.

Knebergish · March 9, 2021, 2:28pm

Hi everyone.

I have a couple of comments on a script for Linux.
Why there are two switching in it - first on all cores, except 0, and after all the cores? At the same time with a pause of 8 seconds between them.
Why is it duplicated code for different number of cores?
Sound signal, seriously?

I rewrote this script taking into account the observations described above.

Script

#!/usr/bin/env bash

gdpid=$(pidof 'Grim Dawn.exe')
gipid=$(pidof 'GrimInternals64')
coresNumber=$(( $(nproc) - 1 ))

if ! [ -z $gdpid ]
then
    resultpid=$gdpid
elif ! [ -z $gipid ]
then
    resultpid=$gipid
fi

if ! [ -z $resultpid ]
then
    taskset -pac 0-$coresNumber $resultpid
    echo New affinity list applied.
else
    echo Grim Dawn executable not found. Aborted.
fi

It turned out quite briefly:

We are looking for the game process
We tell it to use all the available cores
???
Profit!

It worked successfully on my Intel Core i7-8750H:

It is possible that someone would prefer to use this version of the script.

powbam · March 9, 2021, 2:32pm

That’s the beauty of having access to the code, you can change it how you like

You should list your CPU properly so others with the same CPU that are searching the thread might see it and know if their CPU should work with this method. The CPU model is more important to know than your OS and CPU threads.

Knebergish · March 9, 2021, 3:48pm

I agree, it makes sense.
Edited the original message.

ncience · March 9, 2021, 11:55pm

i actually like the sound signal. i changed the frequency and duration abit for my liking, but having an acoustical feedback for sucessful switching while in game, i cant see a reason to complain.

powbam · March 10, 2021, 3:26am

Yea, I wanted an audio cue when I was making it that it had successfully fired off and I ended up liking it as well. As for the “gap” between switching between Core 0 and then switching back, I had some weird issues when I was first making it that it didn’t seem to be working correctly (on the Windows implementation) unless I added a ‘sleep’ in between.

Can’t remember why I decided on 8 seconds but anyways, I did - but it isn’t likely necessary to be so long

The one nice thing about the Linux script - as Knebergish shows in his - is that it is significantly easier (far less) code to toggle the cores via a Linux bash script. On Windows it’s drastically more complicated to perform the same action, requiring me to have the correct “affinity mask numbers” depending on the CPU’s number of cores.

Was a bit of a pain since I had to reference between an ‘affinity mask calculator’ while making it.
https://www.gfsg.co.uk/affinitymask.aspx?SubMenuItem=utilties
https://fsxtimes.wordpress.com/2017/09/08/455-affinity-mask-calculator-enhanced/

This article here helped me greatly with learning how to do it via Powershell…
https://web.archive.org/web/20190828031753/http://www.energizedtech.com:80/2010/07/powershell-setting-processor-a.html

For the code at the very top of the Windows script to get a users CPU and core amount etc via AutoHotkey, I cannibalized this code here:
https://autohotkey.com/board/topic/60968-wmi-tasks-com-with-ahk-l/
…from a user named “sbc” a few posts down from the OP.

Whatever1 · March 29, 2021, 10:36pm

For me the method of switching Core 0 off and on again doesn’t work as expected. The process latches onto a different core, seemingly randomly. Switching off the currently loaded core just causes a different one to get loaded, it’s like playing whack-a-mole. I have AMD Ryzen 5 4600H. I also tried switching off odd or even cores, leading to the same result.
Are there any other options?

powbam · March 29, 2021, 10:49pm

No and yes. This is one of those things that either works or it doesn’t. However, you CAN try going into your BIOS and disabling SMT and then try again. SMT is AMD’s version of Hyperthreading (what Intel calls it). This will basically disable your CPU’s extra virtual cores and limit you strictly to your “true” physical cores. In the case of your CPU this would mean it would then be using 6 (real) cores versus the 12 it has with SMT enabled.

At the very least you could at least test it out (even if you don’t intend to leave it disabled) to see if there is a difference in performance (hopefully for the better) with Grim Dawn for you. In the past there were people that found that disabling Hyperthreading did improve Grim Dawn’s performance for them.

If you do try it I would suggest basically doing the stuff I describe in the OP here. Reboot to BIOS, disable SMT, save and reboot back to the OS, open the Performance Monitor so you can watch your core activity, start the game and play for a minute or two, tab out or whatever to check and see if its hogging on a single core primarily, if so try the Core 0 toggle and then see what happens etc.

Whatever1 · March 30, 2021, 2:20am

SMT setting is inaccessible in my crippled laptop BIOS. AMD Ryzen Master (which can toggle SMT) doesn’t support my CPU. I’ll keep looking into it for a bit and get back if I manage to disable it.

powbam · March 30, 2021, 10:37am

Mm that sucks. The only thing I can think to suggest in a case like that is to check your laptop manufacturers website for drivers for your laptop. Specifically, updated BIOS drivers - in the hopes that they may have enabled it later down the line.

I suppose you could try to “fake” disable SMT for Grim Dawn, by disabling every other core, and see if it behaves any differently.

Basically for your CPU:

Start game
Disable Cores 1,3,5,7,9,11 for GD
Play it for a lil, see if anything changes - maybe do a Core 0 toggle on it after a couple mins etc
Alternatively you can also try disabling Cores 0,2,4,6,8,10 instead

And if none of that changes anything for the better and there are no updated BIOS drivers etc then I’m pretty much outta ideas on that front and there might simply be nothing much that we can do for that CPU beyond that point.
